Product info

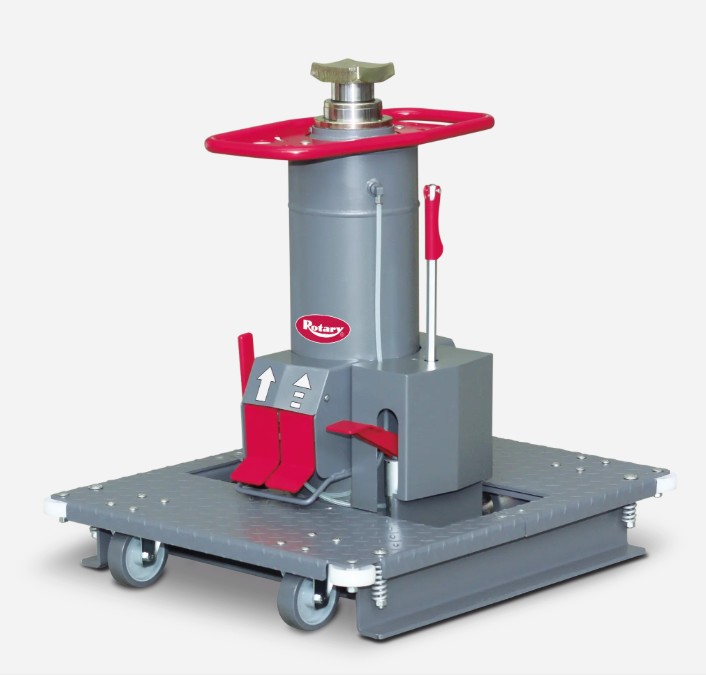

15/15/15 t, 1300 mm lift, high speed, operating panel completely
covered, two-sided operation
Mode of drive: hydropneumatic
Operation: Foot operation, on both sides
Pit jack design: floor-running
Quick lift: standard
Forced return: standard
Telescopability: 3 -fold
Rated load capacity: 15000 kg
Capacity first level: 15000 kg
Capacity second level: 15000 kg
Capacity third level: 15000 kg
Stroke: 1300 mm
Lifting height max.: 2030 mm
Lifting time loaded: 127 s
Lowering time loaded: 100 s
Mounting diameter: 55 mm
Carriage: freely movable with transverse traveling gear
Undercarriage lenght: 1040 mm
Undercarriage width: 820 mm
Overall height: 730 mm
Operating pressure: 298 bar
Surface coating: Lacquered
Corrosion preventing: Ultra High Solid Primer (UHS)
Air supply: 10 bar
Air supply max.: 15 bar
Country of Origin, customs: DE
