Ask for Offer
Available to order. The delivery time will be confirmed after the order is placed. If it doesn’t work for you, you can cancel.
Product info

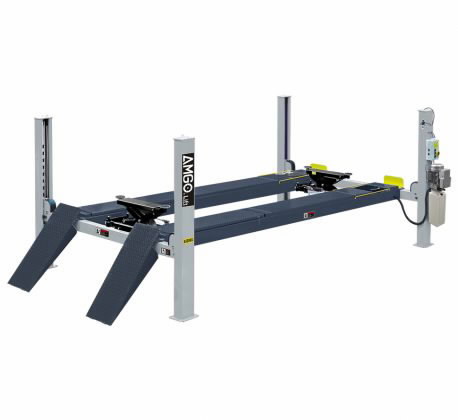

The PEAK model A465A delivers the ultimate in convenience, versatility, safety and durability, you can raise your alignment business to peak performance levels. Capable of lifting vehicles weighing up to 6.5T., the model A465A has the power and reliability to expand coverage from cars to trucks.
Lifting Capacity6500kg
Lifting Time71S

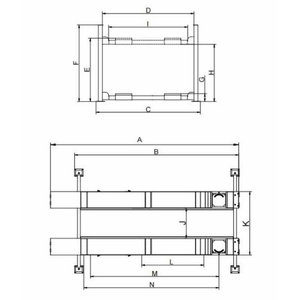

A:Overall Length (Inc Ramps)6528mm
B:Overall Length (No Ramps)5500mm
C:Overall Width3324mm
D:Width Between Columns2946mm
E:Max.Lifting Height1972mm
F:Overall Height2189mm
G:Minmum Height232mm
H:Max. underneath height1752mm
I:Drive-Thru clearance2592mm
J:Width between runways1194mm / Max.1385mm
K:Outside edge of runways2210mm / Max.2401mm
L:Min. Four Wheel Align2396mm
M:Max. Four Wheel Align4310mm
N:Max. Two Wheel Align4472mm
Gross Weight1544Kg
Motor3.0 HP

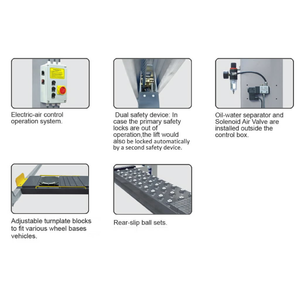

• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Skid proof diamond platform.
• Two adjustable turntable positions to fit the different wheel base
• Adjustable platform and adjustable safety lock ladders.
• Dual safety device: In case the primary safety locks are out of operation,the lift would also be locked automatically by a second safety device
