Product info

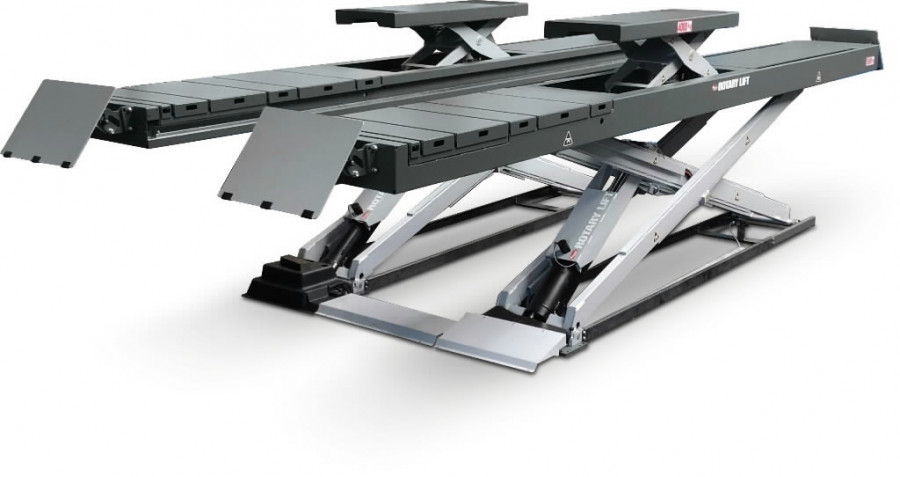

5.0 t, electrohydraulic, with jacking beam, platform lenghts 5500 mm, Inground
SCISSOR LIFT DESIGN: Scissors with runways
MODE OF DRIVE: electrohydraulic
TYPE OF INSTALLATION: surface mounted
RATED LOAD CAPACITY: 5000kg
LIFTING HEIGHT MAX.: 2100mm
MAX. LIFING HEIGHT AT FLOOR LEVEL: 1805mm
LIFTING TIME: 47s
LOWERING TIME: 40s
PLAY DETECTOR: standard
DRIVE-ON-HEIGHT: 295mm
SURFACE COATING: Powder coated
CORROSION PREVENTING: Cathodic electrodeposition coating (CEC)
WHEEL ALIGNMENT: not possible
LENGTH OF RUNWAYS: 5500mm
WIDTH OF RUNWAYS: 650mm
WHEEL FREE LIFT: standard
RATED LOAD CAPACITY OF WHEEL FREE LIFT: 4000kg
LIFTING HEIGHT OF WHEEL FREE LIFT: 490mm
LIFTING TIME - WHEEL FREE LIFT: 5s
LOWERING TIME OF WHEEL FREE LIFT: 10s
LENGTH OF WHEEL FREE LIFT: 1390 - 2100mm
DRIVING POWER: 3,5kW
POWER SUPPLY: 400 V | 50 - 60 Hz
LENGTH: 5965mm
WIDTH: 2200mm
WEIGHT: 1880kg
INSTALLATION DEPTH: 295mm
