Product info

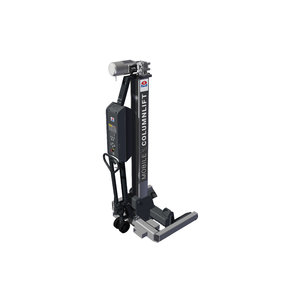

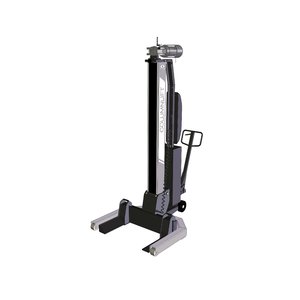

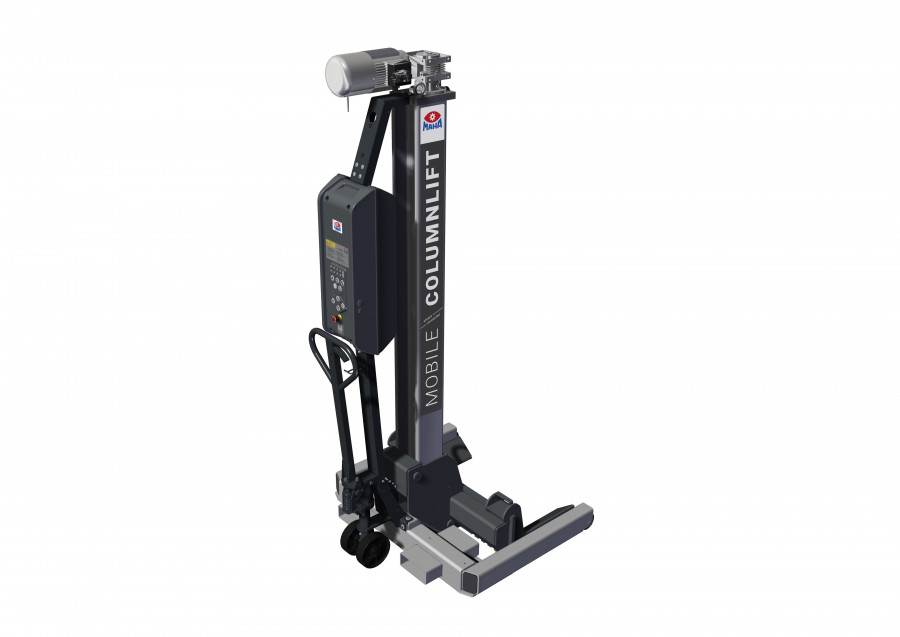

The new mobile column lift model C_RGA with proven electromechanical drive is completely oil-free and thus requires extremely little maintenance. Mobile, wireless column lift with energy supply via powerful rechargeable lithium-ion batteries.
Load capacity CE per column 7500 kg
Drive power per column 1.5 kW
Weight per column 525 kg
Width of column profile 180 mm
Width of chassis 1150 mm
Height of chassis 131 mm
Full travel 1700 mm
Lifting height (upper edge of lifting carriage) 1800 mm
Overall height of column 2474 mm
Lifting/Lowering time (load-dependent) 127 s
Lifting/Lowering time High speed (load-dependent) 81 s
Inner distance of support forks min. - max. 290 - 680 mm
Tyre diameter min. - max. 550 - 1500 mm
Length of support forks 380 mm
Voltage for charger 1 x 100-230 V AC 50/60 Hz
Fuse B 16A RCD (30 mA)
Power supply LiIon 50.4 VDC
Lifting cycles under partial load
(3500 kg, w/o high speed option) 35
Lifting cycles under full load (w/o high speed option) 25
Protection rating IP 54
