Product info

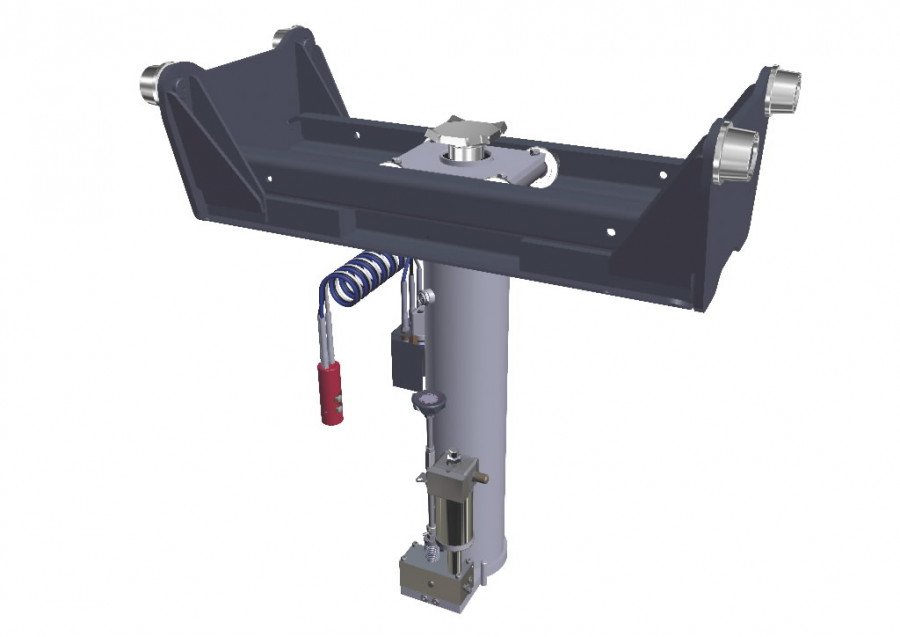

The suspended pit jack lifts up to 16.5 t. The overhead rail pit jack, with deep-drawn carriage and long 750 mm stroke, is suitable for work with or without axle crossbeams and support systems. Compressed-air rapid control provides fast up and down movement when there is no load. The equipment also includes an air motor for lifting the piston rod under load.
Technical data:
Load capacity (CE)16,500 kg
Stroke distance750 mm
Lifting levels1
Min. pick-up height from roller slide rail- 69 mm
Pit jack depth for roller slide rail1070 mm
Max. lifting height above roller slide rail681 mm
Slide rail width inner dimensions700 ? 1200 mm
Carriage adjustable range140 mm
Roller rest width40 mm
Roller rest incline8 % / 4.6°
Max. parallelism deviation slide rails10 mm
Roller diameter (at the flange)80 (95) mm
Support diameter inside/outside45/70 mm
Piston rod diameter70 mm
Oil quantity/quality9.5 l / HLP-D 10
Drive350 l/min. 11 bar
Operating pressure254 bar
Weight239 kg
