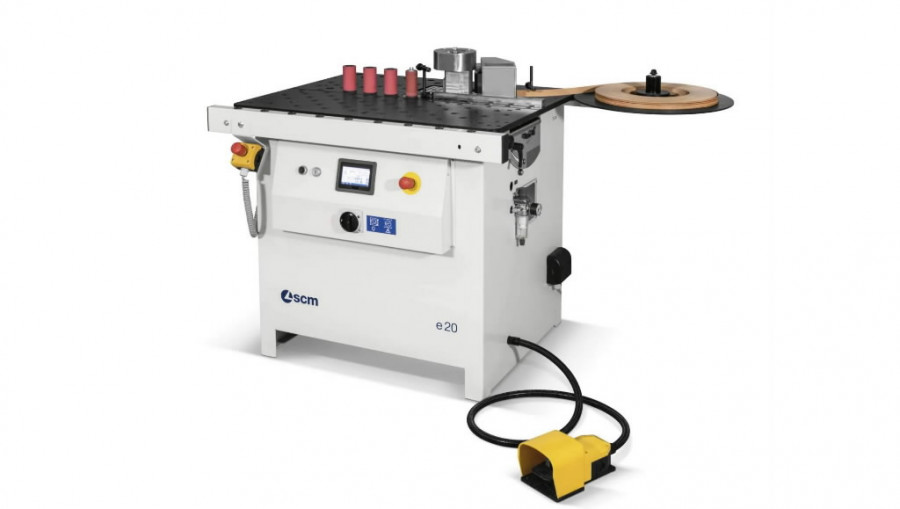

Edge bander E 20

for straight and shaped panels Standard equipment: 4,3** Touch screen with advanced functions Complete with: - Adjustment of the edge feed speed from 3 to 8 m/min ƒ- Management of manual work modes, programmed cutting and measure of the panel perimeter ƒ- Automatic calculation of the required edge length with reference to the most common geometries Anti-scratch phenolic multilayer worktable with modular holes complete with supports (no. 20 standard supports) Shear device for rolled edges complete with roll-holder plate Teflon-coated hot melt glue pot installed underneath the worktable to ensure a continuous glue recirculation and avoid its overheating. Powerful heating system for an immediate use with timed stand-by Glue application of edging material by means of a powered glue spreading roller No.1 powered pressure roller Start/stop cycle pedal Technical data: Thickness of pre-cut edges in strips 0,4-3mm Thickness of edges with shear device: (80 mm height) 0,4-1,5mm (50 mm height) 0,4-2,5mm (45 mm height) 0,4-3mm Edges height 10-84mm Panels thickness 8-80mm Minimum panel width 50mm Minimum panel length to be applied 290mm Minimum internal radius with 0,4 mm edge thickness (concave profile) 25mm Minimum external radius with 0,4 mm edge thickness (convex profile) 5mm Feed speeds 3-4-5-6-7-8m/min Operating temperature 140-220°C Installed motor power 6,9kW Coil holder plate diameter 520mm Overall dimensions 101x810x1100mm
